HMI Display includes instruction manual and troubleshooting.
Machinery Range.
We understand that each customer has its own specific needs and requirements. Our wide range of machinery assures finding the ideal packaging solution. Explore our SIG Motion Series.
SIG Motion Series
State-of-the-art technology
The SIG Motion Series features a transmission system, a SIG patented invention, which enables for multiple independent axis movements.
This technology substitutes the traditional and standard single cam shaft, and therefore has significantly fewer mechanical parts. The control is provided by means of an intuitive touch screen HMI, facilitating format change-over and adaptability to multiple formats. This is made possible by the servo technology, which enables independent movements of machine parts.
The SIG Motion Series produces pouches with excellent seals, equal to the quality of premade pouches. Moreover, these machines produce pouches with a huge number of designs and shapes for a better product differentiation on the shelf.
SIG Motion Series Features.
Servo Technology, Full control of machine operation
Pouch width automatic correction system, allows for a productivity up to 10% higher than mechanical HFFS machines
Accessibility for easier maintenance facilitated by the 3D touch screen. Which includes instructions manuals, electronic and pneumatic diagrams.
Little maintenance is required because the SIG Motion Series machines possess fewer mechanical parts. And its Sanitary construction simplifies the machine.
The SIG Motion Series machines are also more eco-sustainable from an energetic consumption point of view. In fact, the servo engines accumulate the excess power and send it back to the grid, effectively increasing energetic efficiency and reducing consumption.
Option of Fitments, zippers and straws.
Cutting Die for pouches with special shapes.
Parallel motion of the vertical sealing bars enables for improved sealing quality and easier maintenance.
SIG Motion Series Technology
Full Servo motion, Walking beam, Mirror machine
Technology. Full Servo Motion
The servo-control system allows independent operation between the different stations.
Transport. Walking beam
Traditional walking beam transport system consisting of beams and grippers. They hold the pouches and transport them through the different stations, from the pouch forming to the pouch closing.
Option. Mirror machine
The machines can be designed in a mirroring position, so that less operators are required to carry out the production.
SIG Motion Series Filling options.
Hot Fill, Ambient Fill, Ultra Clean/ESL, Aseptic
Hot Fill
Heat processed products.
Ambient Fill
Non-heat processed products.
Ultra Clean / ESL
Products intended for cold-chain distribution.
SIG Motion Series Sealing options.
Heat seal, Ultra Sonic, Induction
Heat Seal
- Based on electric resistance.
- Easy engineering, simple maintenance.
Ultra Sonic
- Based on ultra-sound frequency.
- Hermetic seals regardless of seal area contamination.
Induction Seal
- Based on electromagnetic resistance.
- Seal and cool at the same step, enabling packaging for a circular economy.
SIG Motion Series Operational drawing.
Zipper & Spouts
HFFS.
+ Efficiency
Horizontal Form Fill Seal machines are packaging machines in which filling, and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.
SIG Motion Series Range.
Based on output, size and packaging volume all different models offer their respective advantages. Explore the SIG Motion Series models.
SIG Motion Series P-1.6
The HFFS machine SIG Motion Series P-1.6 can work in simplex and duplex, forming and filling pouches within a range of 70 x 80 mm. and 160 x 300 mm. It can reach an output of 120 pouches per minute and can fill up to 1,200 cc of product.
SIG Motion Series P-2.2
The HFFS machine SIG Motion Series P-2.2 can work in simplex and duplex, forming and filling pouches within a range of 60 x 60 mm. and 200 x 300 mm. It can reach an output of 180 pouches per minute and can fill up to 1,500 cc of product.
SIG Motion Series P-2.4
The HFFS machine SIG Motion Series P-2.4 can work in simplex and duplex, forming and filling pouches within a range of 70 x 80 mm. and 200 x 280 mm. It can reach an output of 120 pouches per minute and can fill up to 1,600 cc of product.
SIG Motion Series P-2.6
The HFFS machine SIG Motion Series P-2.6 can work in simplex and duplex, forming and filling pouches within a range of 80 x 80 mm. and 260 x 300 mm. It can reach an output of 160 pouches per minute and can fill up to 2,500 cc of product.
SIG Motion Series P-3.3
The HFFS machine SIG Motion Series P-3.3 can work in simplex, duplex and triplex, forming and filling pouches within a range of 80 x 80 mm. and 260 x 300 mm. It can reach an output of 160 pouches per minute and can fill up to 2,500 cc of product.
SIG Motion Series P-4.2
The HFFS machine SIG Motion Series P-4.2 can work in duplex and quadruplex, forming and filling pouches within a range of 80 x 120 mm. and 210 x 300 mm. It can reach an output of 240 pouches per minute and can fill up to 1,600 cc of product.
SIG Motion Series Features.
- Better accessibility for easier maintenance
- 3D touch screen HMI
- Pouch width automatic correction system
- Instructions manual, electronic and pneumatic diagrams available on the touch screen
- Productivity up to 10% higher than mechanical HFFS machines
- Little maintenance is required, because they have less wearing parts
- Quality of pouch seals can be compared to the quality offered by pre-made pouches
- The mechanical groups operate independently from each other
- Sanitary construction
- Eco-friendly machine: the excess of power is sent back to the grid.
- The latest technology is present in SIG Motion Series machines: optical fiber, optical barriers, position sensors, vision cameras, etc.
The machines in the SIG Motion Series produce perfect seals of OUTSTANDING QUALITY that equals the quality of premade pouches, with a huge number of designs and shapes for marketing purposes.
The pouch transport on the line occurs on a traditional walking beam transport system consisting of beams and grippers. They hold the pouches and transport them through the different stations, from the pouch forming to the pouch closing.

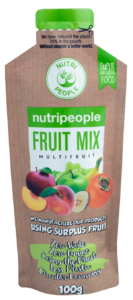

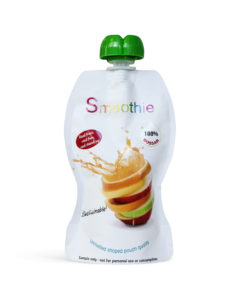

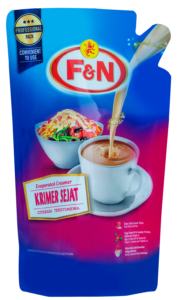

SIG Motion Series Pouches.
