Dosing units for liquids available with different nozzles for any kind of product. Hygienic design and easy to dismantle filling system, with clamps. SIG HFFS machines are suitable to work with several kinds of dosing systems.
Machinery Range.
We understand that each customer has its own specific needs and requirements. Our wide range of machinery assures finding the ideal packaging solution. Explore our SIG Mechanical Series.
SIG Mechanical Series Modular Kit.
Maximum Flexibility with modules
The basic design of the SIG Mechanical Series is based on the modular frame construction composed of 3 independent modules:
- Unwind Module
- Pouch Forming Module
- Filling Module
SIG Mechanical Series Features.
Adaptive,
All the models of our SIG Mechanical Series range have standardized groups and increased machine features so that they can be adapted for any kind of filling system or fitment.
After evaluating the product characteristics and the application, our Engineering Department recommends the most suitable dosing unit. The SIG Mechanical Series machines are equipped with two filling stations that enable to fill more than one product into the same pouch.
SIG machines are equipped for the insertion of straws, of spouts or zippers in the pouches.
Vertical sealing group equipped with motorized adjustment for size, through an intuitive touch screen. By so doing, the Sealing jaws temperature can be individually controlled.
Top sealing and cooling groups with 180º folding hinge for easy cleaning. Sealing jaws adjustments are not required during the change of the sealing bars. Removable walking beam allows a fast format change over.
SIG Mechanical Series Technology
Mechanical motion, Walking beam, Mirror machine
Technology. Mechanical Motion
Mechanical technology consisting of cams..
Transport. Walking Beam
Traditional walking beam transport system consisting of beams and grippers. They hold the pouches and transport them through the diferent stations, from the pouch forming to the pouch closing.
Mirror Machine Option
The machines can be designed in a mirroring position, so that less operators are required to carry out the production.
SIG Mechanical Series Filling options.
Hot Fill, Ambient Fill, Ultra Clean/ESL
Hot Fill
Heat processed products.
Ambient Fill
Non-heat processed products.
Ultra Clean / ESL
Products intended for cold-chain distribution.
SIG Mechanical Series Sealing options.
Heat seal, Ultra Sonic
Heat Seal
- Based on electric resistance.
- Easy engineering, simple maintenance.
Ultra Sonic
- Based on ultra-sound frequency.
- Hermetic seals regardless of seal area contamination.
SIG Mechanical Series Operational drawing.
HFFS.
+ Efficiency
Horizontal Form Fill Seal machines are packaging machines in which filling, and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.
SIG Mechanical Series Range.
Based on output, size and packaging volume all different models offer their respective advantages. Explore the SIG Mechanical Series models.
SIG Mechanical Series P-1400
SIG Mechanical Series P-1400 forms and fills pouches within a range from 50 x 60 mm. to 140 x 230 mm. It can reach an output of 200 pouches per minute and fill up to 750 cc of product.
SIG Mechanical Series P-2000
Bossar machine BMK 2000 forms and fills pouches within a range from 60 x 60 mm. to 200 x 300 mm. It can reach an output of 180 pouches per minute and fill up to 1,500 cc of product.

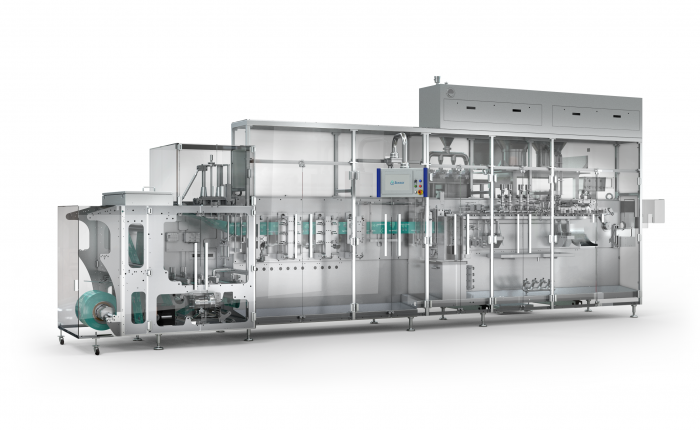

SIG Mechanical Series P-2600
Bossar model BMK 2600 forms and fills pouches within a range from 80 x 80 mm. to 260 x 300 mm. It can reach an output of 160 pouches per minute and fill up to 2,500 cc of product in simplex and 500 cc in duplex.
SIG Mechanical Series P-3300
Bossar model BMK 3300 forms and fills pouches within a range of 80 x 80 mm and 260 x 300 mm, it can reach an output of 120 pouches per minute and can fill up to 2,500 cc of product in simplex and 1,000 cc in duplex.

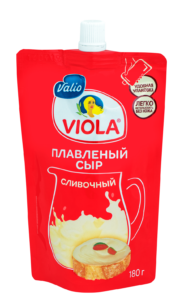

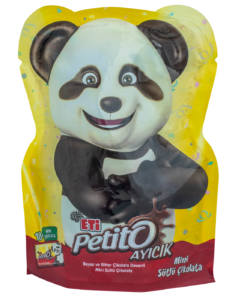

SIG Mechanical Series Pouches.
